MSA30LSSSF0H Carriage

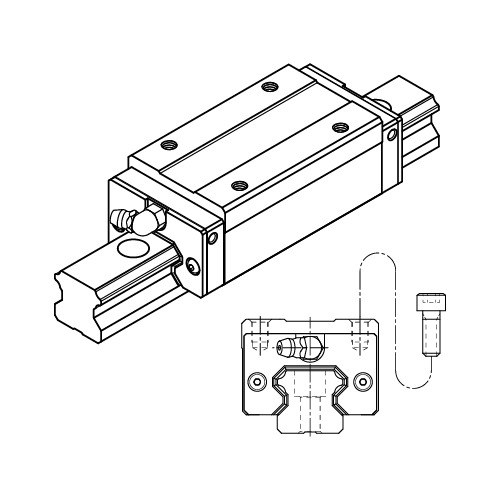

MSA30LS is a Long Narrow type of PMI linear guideway, can be installed from top side of carriage.

Cross References
HGH30HAZAH (HIWIN)
TRH30VENZ0 (TBI)
SBI30SLLNK1 (SBC)
R162371330 (Rexroth)
HSR30HRSSH (THK)
LLRHC30LUT2P3 (Ewellix)

The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

375.76 zł 375.76 PLN 375.76 zł VAT Excluded

87.56 zł VAT Excluded

Linear guideway series
Linear guideway size
Brand

This combination does not exist.

ADD TO CART

Available only to registered users. You need to Login or Register to complete the transaction.

Linear guideway series: MSA - Heavy Load

Linear guideway size: 30

Brand: PMI

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Model No.	External dimension, mm					Carriage dimension										Rail dimension, mm					Basic load rating		Static moment rating, kN·m					Weight
Model No.	Height H	Width W	Length L	W2	H2	B	C	S×ℓ	L1	T	N	G	K	d1	Grease Nipple	Width W1	Height H1	Pitch P	E std.	D × h × d	Dynamic C kN	Static C₀ kN	Mp Single	Mp Double	My Single	My Double	Mr	Carriage kg	Rail kg/m
MSA 15 S	28	34	56.3	9.5	4.2	26	26	M4×5	39.3	7.2	8.3	7	5.4	3.3	G-M4	15	15	60	20	7.5×5.3×4.5	11.8	18.9	0.12	0.68	0.12	0.68	0.14	0.18	1.5
MSA 20 S MSA 20 LS	30	44	72.9	12	5	32	36	M5×6	51.3	8	5	12	5	3.3	G-M6	20	18	60	20	9.5×8.5×6	19.2	29.5	0.23	1.42	0.23	1.42	0.29	0.3	2.4
MSA 20 S MSA 20 LS	30	44	88.8	12	5	32	50	M5×6	67.2	8	5	12	5	3.3	G-M6	20	18	60	20	9.5×8.5×6	23.3	39.3	0.39	2.23	0.39	2.23	0.38	0.39	2.4
MSA 25 S MSA 25 LS	40	48	81.6	12.5	6.5	35	35	M6×8	59	10	10	12	5.5	3.3	G-M6	23	22	60	20	11×9×7	28.1	42.4	0.39	2.20	0.39	2.20	0.48	0.52	3.4
MSA 25 S MSA 25 LS	40	48	100.6	12.5	6.5	35	50	M6×8	78	10	10	12	5.5	3.3	G-M6	23	22	60	20	11×9×7	34.4	56.6	0.67	3.52	0.67	3.52	0.63	0.68	3.4
MSA 30 S MSA 30 LS	45	60	97	16	8	40	40	M8×10	71.4	11.7	10	12	6	3.3	G-M6	28	26	80	20	14×12×9	39.2	57.8	0.62	3.67	0.62	3.67	0.79	0.86	4.8
MSA 30 S MSA 30 LS	45	60	119.2	16	8	40	60	M8×10	93.6	11.7	10	12	6	3.3	G-M6	28	26	80	20	14×12×9	47.9	77.0	1.07	5.81	1.07	5.81	1.05	1.12	4.8
MSA 35 S MSA 35 LS	55	70	111.2	18	9.5	50	50	M8×12	81	12.7	15	11.5	6.5	3.3	G-M6	34	29	80	20	14×12×9	52.0	75.5	0.93	5.47	0.93	5.47	1.25	1.45	6.6
MSA 35 S MSA 35 LS	55	70	136.6	18	9.5	50	72	M8×12	106.4	12.7	15	11.5	6.5	3.3	G-M6	34	29	80	20	14×12×9	63.6	100.6	1.60	8.67	1.60	8.67	1.67	1.9	6.6
MSA 45 S MSA 45 LS	70	86	137.7	20.5	10	60	60	M10×17	102.5	16	20	13.5	7	3.3	G-PT 1/8	45	38	105	22.5	20×17×14	83.8	117.9	1.81	10.67	1.81	10.67	2.57	2.83	11.5
MSA 45 S MSA 45 LS	70	86	169.5	20.5	10	60	80	M10×17	134.3	16	20	13.5	7	3.3	G-PT 1/8	45	38	105	22.5	20×17×14	102.4	157.3	3.13	16.95	3.13	16.95	3.43	3.7	11.5
MSA 55 S MSA 55 LS	80	100	162.1	23.5	13	75	75	M12×18	119.5	18	21	13.5	12.4	3.3	G-PT 1/8	53	44	120	30	23×20×16	123.6	169.8	3.13	17.57	3.13	17.57	4.5	4.12	15.5
MSA 55 S MSA 55 LS	80	100	200.1	23.5	13	75	95	M12×18	157.5	18	21	13.5	12.4	3.3	G-PT 1/8	53	44	120	30	23×20×16	151.1	226.4	5.4	28.11	5.4	28.11	6.0	4.91	15.5
MSA 65 S MSA 65 LS	90	126	198.6	31.5	15	76	70	M16×20	149	23	19	13.5	15.9	3.3	G-PT 1/8	63	53	150	35	26×22×18	198.8	265.3	6.11	33.71	6.11	33.71	8.36	6.43	21.9
MSA 65 S MSA 65 LS	90	126	252.6	31.5	15	76	120	M16×20	203	23	19	13.5	15.9	3.3	G-PT 1/8	63	53	150	35	26×22×18	253.5	375.9	11.84	57.32	11.84	57.32	11.84	8.76	21.9

Catalog "Linear Guideway PMI"

Heavy Load Type, MSA Series

The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.

High Rigidity, Four-way Equal Load
The four trains of balls are allocated to a circular contact angle at 45°, thus each train of balls can take up an equal rated load in all four directions. Moreover, a sufficient preload can be achieved to increase rigidity, and this makes it suitable for any kind of installation.

Smooth Movement with Low Noise
The simplified design of circulating system with strengthened synthetic resin accessories makes the movement smooth and quiet.

Self Alignment Capability
The self adjustment is performed spontaneously as the design of face-to-face (DF) circular arc groove. Therefore, the installation error could be compensated even under a preload, and which results in precise and smooth linear motion.

Interchangeability
For interchangeable type of linear guideway, the dimensional tolerances are strictly maintained within a reasonable range, and this has made the random matching of the same size of rails and carriages possible. Therefore, the similar preload and accuracy can be obtained even under the random matching condition. As a result of this advantage, the linear guideway can be stocked as standard parts, the installation and maintenance become more convenient. Moreover, this is also beneficial for shortening the delivery time.
