MSA25LESSF1H Carriage

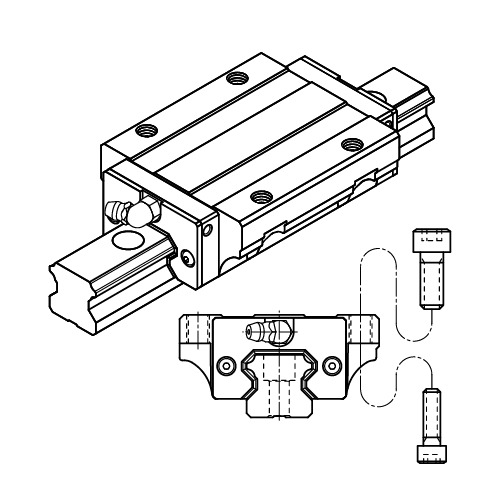

MSA25LE (Long Flange) is a carriage with installation on both (top or bottom) sides.

Cross References
HGW25HAZBH (HIWIN)
TRH25FEZN0 (TBI)
SBI25FLLNK3 (SBC)
R165322320 (Rexroth)
HSR25HASSС0H (THK)
LLRHC25LAT2P3 (Ewellix)

The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.

347.44 zł 347.44 PLN 347.44 zł VAT Excluded

80.96 zł VAT Excluded

Linear guideway series
Linear guideway size
Brand

This combination does not exist.

ADD TO CART

Available only to registered users. You need to Login or Register to complete the transaction.

Linear guideway series: MSA - Heavy Load

Linear guideway size: 25

Brand: PMI

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Model No.	External dimension, mm					Carriage dimension												Rail dimension, mm					Basic load rating		Static moment rating, kN·m					Weight		Bolt size
Model No.	Height H	Width W	Length L	W2	H2	B	C	S×ℓ	L1	T	T1	T2	N	G	K	d1	Grease Nipple	Width W1	Height H1	Pitch P	E std.	D × h × d	Dynamic C kN	Static C₀ kN	Mp Single	Mp Double	My Single	My Double	Mr	Carriage kg	Rail kg/m	S1	S2
MSA 15 E	24	47	56.3	16	4.2	38	30	M5×7	39.3	7	11	7	4.3	7	5.4	3.3	G-M4	15	15	60	20	7.5×5.3×4.5	11.8	18.9	0.12	0.68	0.12	0.68	0.14	0.18	1.5	M5	M4
MSA 20 E MSA 20 LE MSA 20 TE	30	63	72.9	21.5	5	53	40	M6×10	51.3	7	10	10	5	12	5	3.3	G-M6	20	18	60	20	9.5×8.5×6	19.2	29.5	0.23	1.42	0.23	1.42	0.29	0.4	2.4	M6	M5
			88.8				40		67.2													9.5×8.5×6	23.3	39.3	0.39	2.23	0.39	2.23	0.38	0.52
			51.1				-		29.5													11×9×7	13.1	17.2	0.16	0.54	0.16	0.54	0.16	0.23
MSA 25 E MSA 25 LE	36	70	81.6	23.5	6.5	57	45	M8×10	59	11	16	10	6	12	5.5	3.3	G-M6	23	22	60	20	11×9×7	28.1	42.4	0.39	2.20	0.39	2.20	0.48	0.62	3.4	M8	M6
MSA 25 E MSA 25 LE	36	70	100.6	23.5	6.5	57	45	M8×10	78	11	16	10	6	12	5.5	3.3	G-M6	23	22	60	20	11×9×7	34.4	56.6	0.67	3.52	0.67	3.52	0.63	0.82	3.4	M8	M6
MSA 30 E MSA 30 LE	42	90	97	31	8	72	52	M10×10	71.4	11	18	10	7	12	6	3.3	G-M6	28	26	80	20	14×12×9	39.2	57.8	0.62	3.67	0.62	3.67	0.79	1.09	4.8	M10	M8
MSA 30 E MSA 30 LE	42	90	119.2	31	8	72	52	M10×10	93.6	11	18	10	7	12	6	3.3	G-M6	28	26	80	20	14×12×9	47.9	77.0	1.07	5.81	1.07	5.81	1.05	1.43	4.8	M10	M8
MSA 35 E MSA 35 LE	48	100	111.2	33	9.5	82	62	M10×13	81	13	21	13	8	11.5	6.5	3.3	G-M6	34	29	80	20	14×12×9	52.0	75.5	0.93	5.47	0.93	5.47	1.25	1.61	6.6	M10	M8
MSA 35 E MSA 35 LE	48	100	136.6	33	9.5	82	62	M10×13	106.4	13	21	13	8	11.5	6.5	3.3	G-M6	34	29	80	20	14×12×9	63.6	100.6	1.60	8.67	1.60	8.67	1.67	2.11	6.6	M10	M8
MSA 45 E MSA 45 LE	60	120	137.7	37.5	10	100	80	M12×15	102.5	13	25	15	10	13.5	7	3.3	G-PT 1/8	45	38	105	22.5	20×17×14	83.8	117.9	1.81	10.67	1.81	10.67	2.57	2.98	11.5	M12	M10
MSA 45 E MSA 45 LE	60	120	169.5	37.5	10	100	80	M12×15	134.3	13	25	15	10	13.5	7	3.3	G-PT 1/8	45	38	105	22.5	20×17×14	102.4	157.3	3.13	16.95	3.13	16.95	3.43	3.9	11.5	M12	M10
MSA 55 E MSA 55 LE	70	140	162.1	43.5	13	116	95	M14×17	119.5	19	32	17	11	13.5	12.4	3.3	G-PT 1/8	53	44	120	30	23×20×16	123.6	169.8	3.13	17.57	3.13	17.57	4.5	4.17	15.5	M14	M12
MSA 55 E MSA 55 LE	70	140	200.1	43.5	13	116	95	M14×17	157.5	19	32	17	11	13.5	12.4	3.3	G-PT 1/8	53	44	120	30	23×20×16	151.1	226.4	5.4	28.11	5.4	28.11	6.0	5.49	15.5	M14	M12
MSA 65 E MSA 65 LE	90	170	198.6	53.5	15	142	110	M16×23	149	21.5	37.5	23	19	13.5	15.9	3.3	G-PT 1/8	63	53	150	35	26×22×18	198.8	265.3	6.11	33.71	6.11	33.71	8.36	8.73	21.9	M16	M14
MSA 65 E MSA 65 LE	90	170	252.6	53.5	15	142	110	M16×23	203	21.5	37.5	23	19	13.5	15.9	3.3	G-PT 1/8	63	53	150	35	26×22×18	253.5	375.9	11.84	57.32	11.84	57.32	11.84	11.89	21.9	M16	M14

Catalog "Linear Guideway PMI"

Heavy Load Type, MSA Series

The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.

High Rigidity, Four-way Equal Load
The four trains of balls are allocated to a circular contact angle at 45°, thus each train of balls can take up an equal rated load in all four directions. Moreover, a sufficient preload can be achieved to increase rigidity, and this makes it suitable for any kind of installation.

Smooth Movement with Low Noise
The simplified design of circulating system with strengthened synthetic resin accessories makes the movement smooth and quiet.

Self Alignment Capability
The self adjustment is performed spontaneously as the design of face-to-face (DF) circular arc groove. Therefore, the installation error could be compensated even under a preload, and which results in precise and smooth linear motion.

Interchangeability
For interchangeable type of linear guideway, the dimensional tolerances are strictly maintained within a reasonable range, and this has made the random matching of the same size of rails and carriages possible. Therefore, the similar preload and accuracy can be obtained even under the random matching condition. As a result of this advantage, the linear guideway can be stocked as standard parts, the installation and maintenance become more convenient. Moreover, this is also beneficial for shortening the delivery time.
