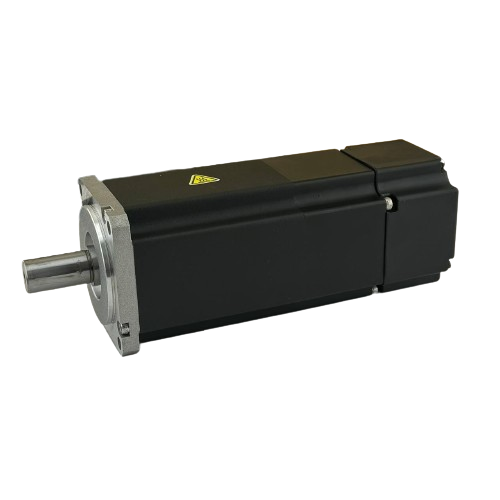

FR-LS-40-2-B-6-06-A Motor
Hiwin FR-LS-40-2-B-6-06-A AC servo motor with brake.
The FR-LS-40-2-B-6-06-A has 17bit encoder.
Frame size 60 mm.
Rated power 400 W.
Rated voltage 230 VAC.
Torque rated (peak) 1.27 (3.81) Nm.
Speed rated (peak) 3000 (4500) rpm.
Current rated (peak) 2.5 (7.5) A.
Weight 1.86 kg.
| Producent: HIWIN |
