ELM1H-0100MA40F Motor

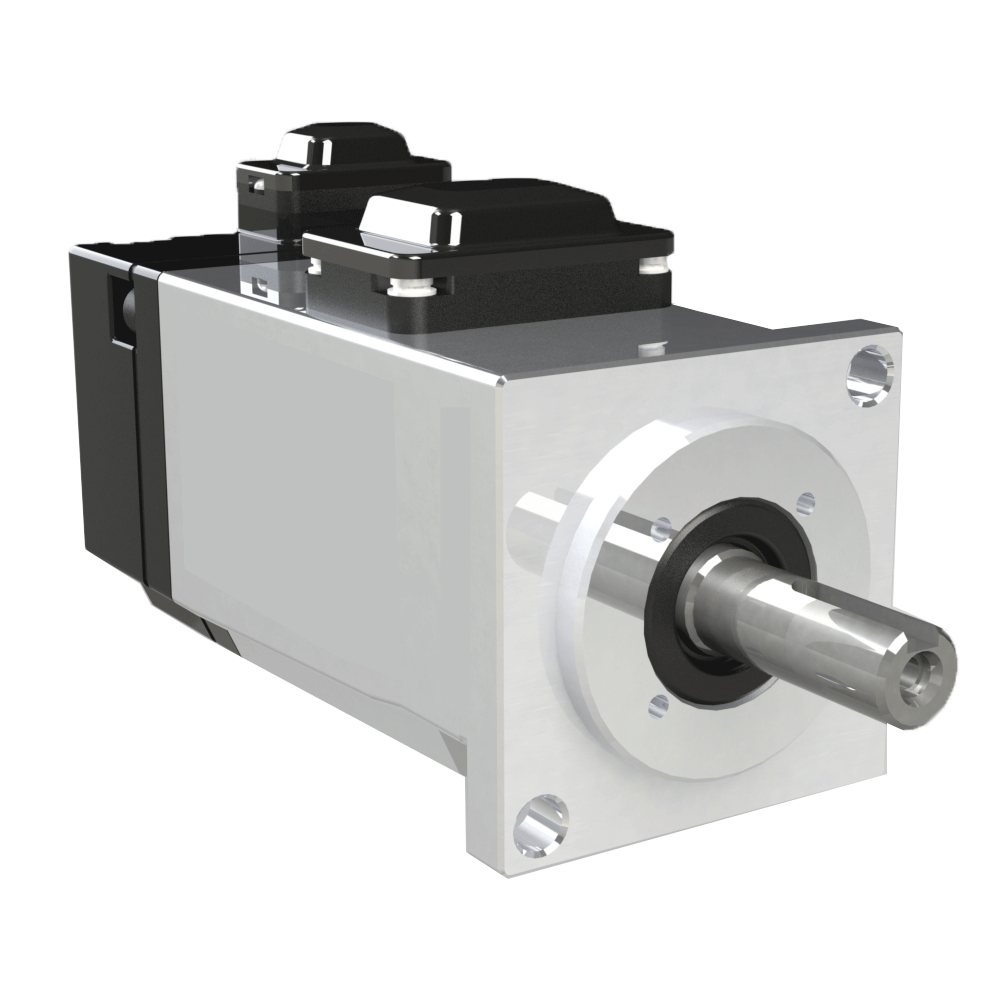

Leadshine ELM1H-0100MA40F AC servo motor.
The ELM1H-0100MA40F has 23bit magnetic encoder.
Frame size 40 mm.
Rated power 100 W.
Rated voltage 230 VAC.
Torque rated (peak) 0.32 (0.96) Nm.
Speed rated (peak) 3000 (5000) rpm.
Current rated (peak) 0.92 (2.85) A.
Weight 0.38 kg.
| Frame size: 40x40 mm |
| Torque: 0.32 Nm |
| Power: 100 W |
| Input Voltage (V): 230 VAC |
| Producent: LEADSHINE |
