ELM1H-1000MA80F Motor

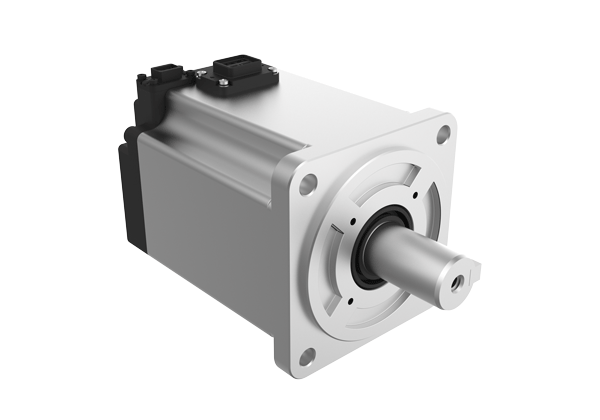

Leadshine ELM1H-1000MA80F AC servo motor.
The ELM1H-1000MA80F has 23bit magnetic encoder.
Frame size 80 mm.
Rated power 1000 W.
Rated voltage 230 VAC.
Torque rated (peak) 3.18 (9.54) Nm.
Speed rated (peak) 3000 (5000) rpm.
Current rated (peak) 5.7 (17.7) A.
Weight 2.8 kg.
| Frame size: 80x80 mm |
| Torque: 3.18 Nm |
| Power: 1000 W |
| Input Voltage (V): 230 VAC |
| Producent: LEADSHINE |
