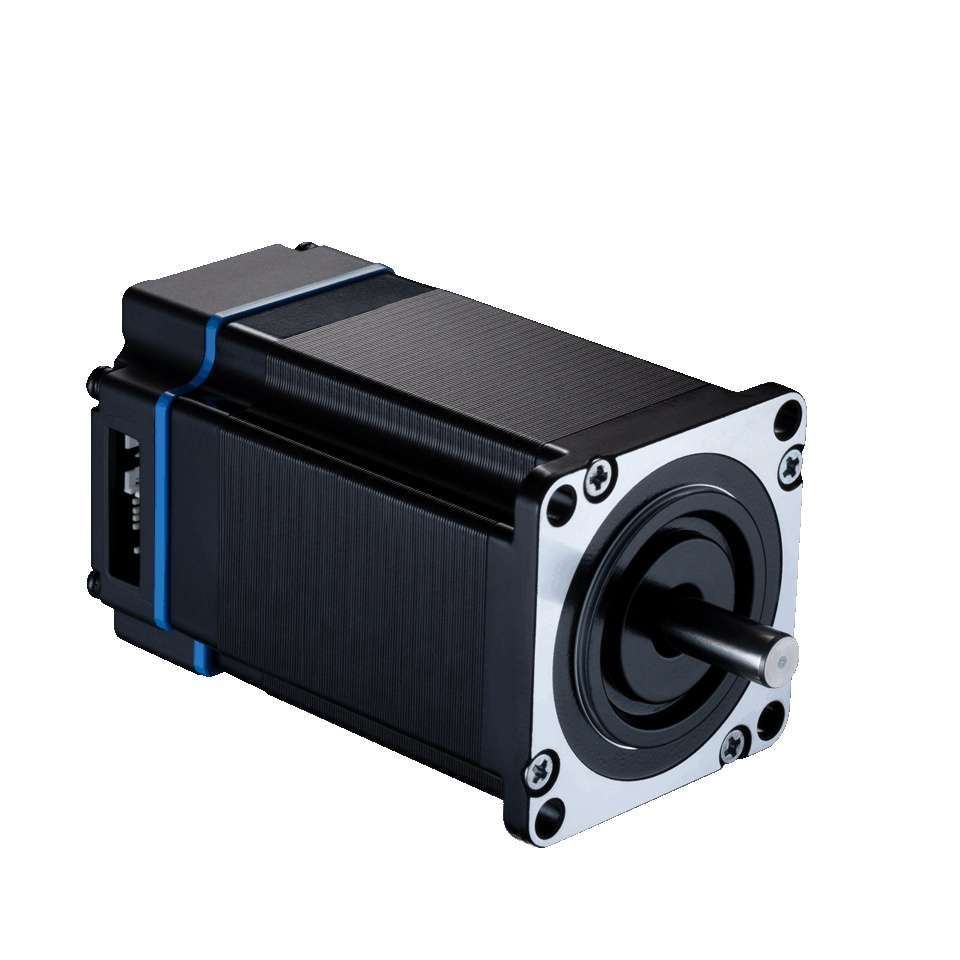

iEM-2313 Motor
Leadshine iEM-2313 is a compact and cost-effective integrated stepper motor that combines a NEMA23 stepper motor, a digital microstepping drive.
Frame size: NEMA23 (57.2 mm).
Supports Pulse+Direction and CW&CCW control modes.
Input voltage range: 20–50 VDC.
Holding torque: 1.3 Nm.
User-configurable I/O: 3 DI, 1 DO.
Built-in protections: over-voltage, over-current and over-temperature.
| Frame size: NEMA23 |
| Torque: 1.3 Nm |
| Communications protocol: Pulse+Direction |
| Producent: LEADSHINE |
| Input Voltage (V): 24 VDC, 36 VDC, 48 VDC |
