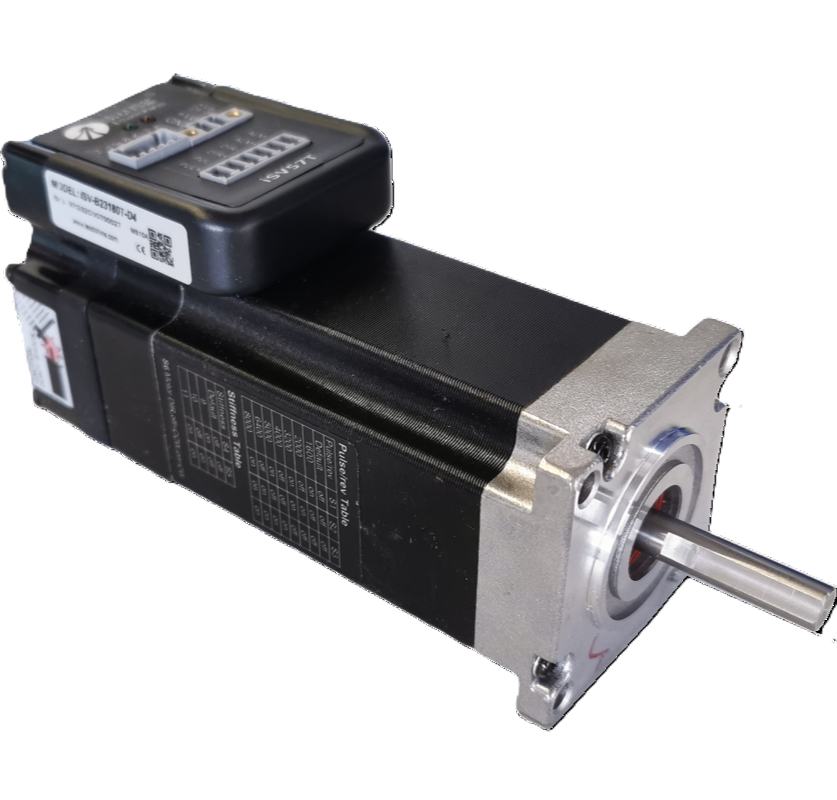

iSV-B23180T-S21 Motor
Leadshine iSV-B23180T-S21 is a high-performance integrated DC servo system that combines a NEMA 23 servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.
Frame size: NEMA23 (57.2 mm).
Rated power: 180 W.
Rated voltage: 36 VDC.
Torque rated (peak): 0.6 (1.1) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV-B23090T-S21 takes Pulse+Direction control mode.
Weight: 1.54 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.
| Frame size: NEMA23 |
| Torque: 0.64 Nm |
| Power: 180 W |
| Communications protocol: Pulse+Direction |
| Input Voltage (V): 24 VDC, 36 VDC |
| Producent: LEADSHINE |
