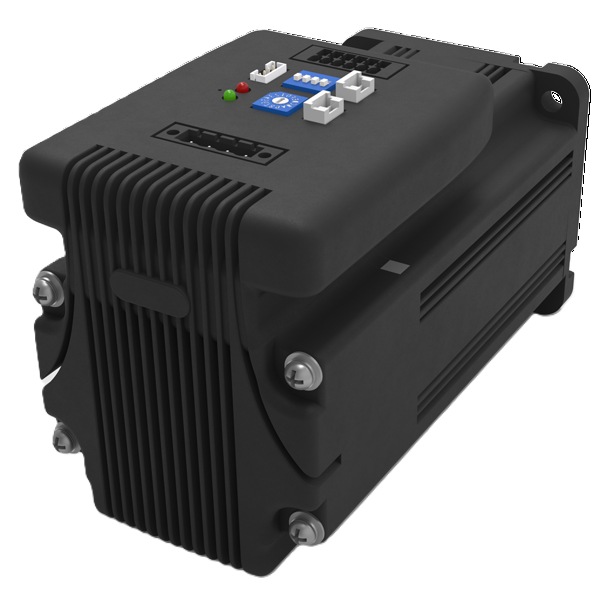

iSV2-RS8075V48H Motor
Leadshine iSV2-RS8075V48H is a high-performance integrated DC servo system that combines servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.
Frame size: 80 mm.
Rated power: 750 W.
Rated voltage: 48 VDC.
Torque rated (peak): 2.39 (7.17) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV2-RS8075V48H takes RS485 Modbus RTU control mode.
User-configurable I/O: 4 DI, 2 DO and 2 AI.
Weight: 2.52 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.
| Frame size: 80x80 mm |
| Torque: 2.39 Nm |
| Power: 750 W |
| Communications protocol: Modbus RTU, Pulse+Direction |
| Input Voltage (V): 48 VDC |
| Producent: LEADSHINE |
