TBR20UU Bushing

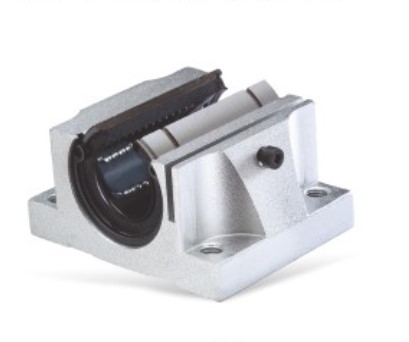

TBR20UU linear ball bearing bushing is designed to ensure smooth and precise linear motion, minimize friction, and extend operational service life.

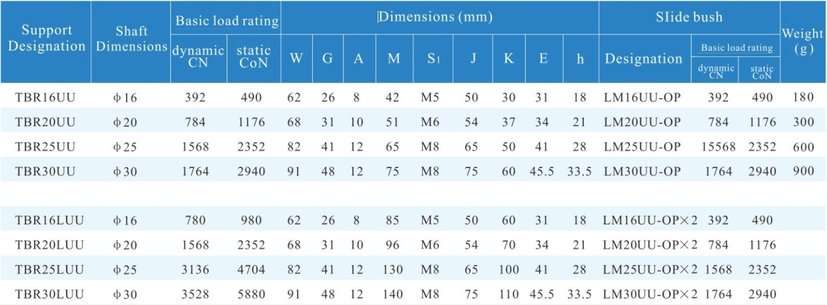

Cross references:
TBR20UU (SAMICK)
SWD20GUU (NB)

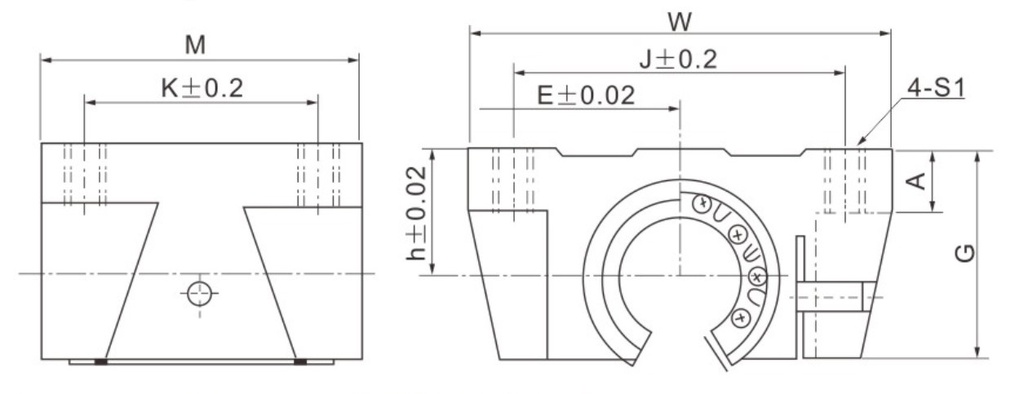

Inner Diameter: 20 mm
Highth (G): 31 mm.
Width (W): 68 mm.
Length (M): 51 mm.
Clamping bolts (S1): M6.
| Średnica wału: 20 |
