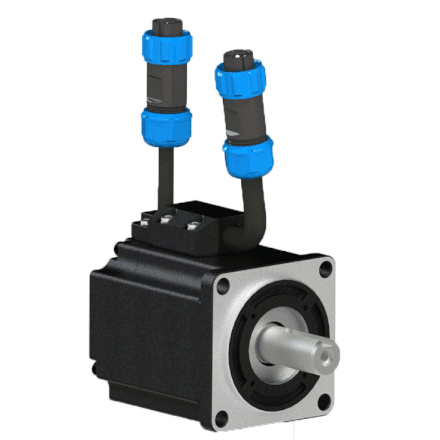

ELVM4010V48EH-M17-HD Motor
Leadshine ELVM4010V48EH-M17-HD DC servo motor with brake.
The ELVM4010V48EH-M17-HD has 17 bit magnetic multi-turn absolute encoder.
Frame size 40 mm.
Rated power 100 W.
Rated voltage 48 VDC.
Torque rated (peak) 0.32 (0.96) Nm.
Speed rated (peak) 3000 (4000) rpm.
Current rated (peak) 5.7 (17.7) A.
Weight 0.59 kg.
| Frame size: 40x40 mm |
| Torque: 0.32 Nm |
| Power: 100 W |
| Input Voltage (V): 48 VDC |
| Brand: LEADSHINE |
