iSV-B23090T-S21 Motor

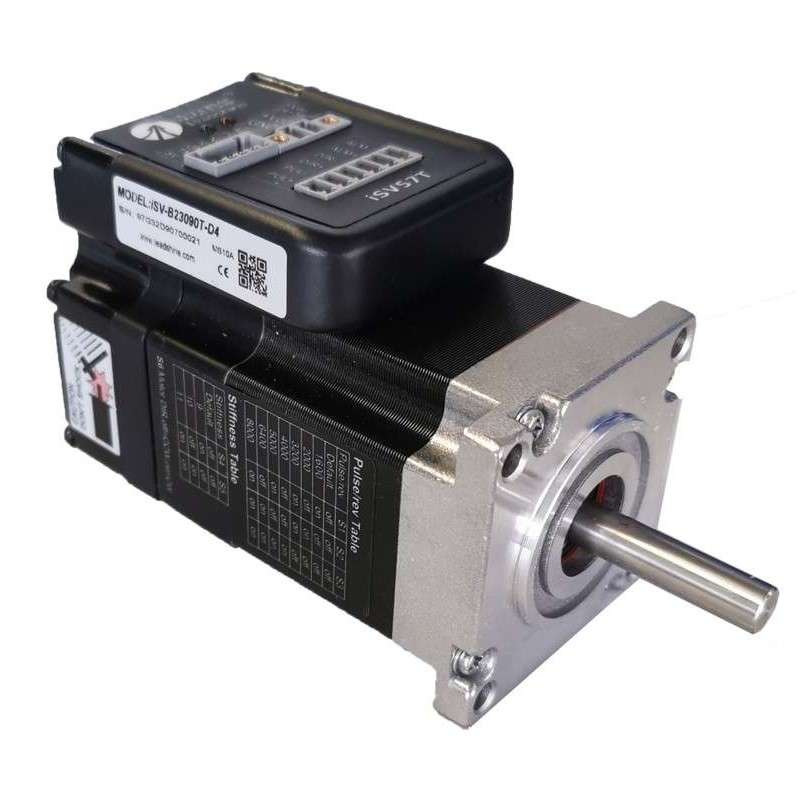

Leadshine iSV-B23090T-S21 is a high-performance integrated DC servo system that combines a NEMA 23 servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.

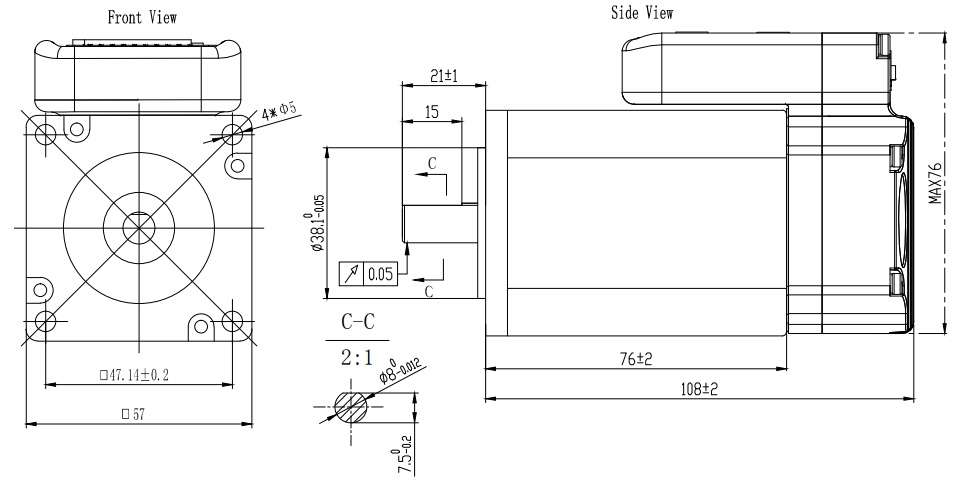

Frame size: NEMA23 (57.2 mm).
Rated power: 90 W.
Rated voltage: 36 VDC.

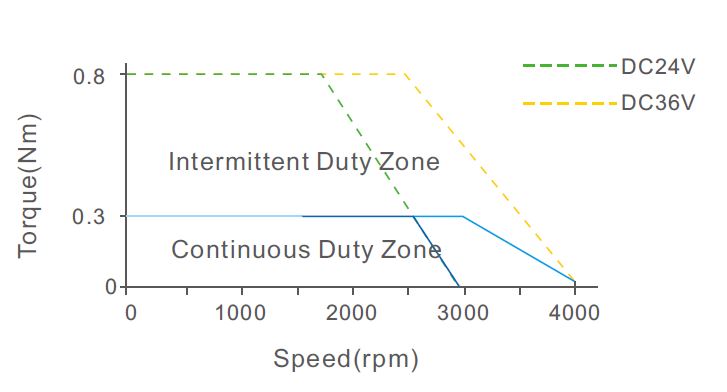

Torque rated (peak): 0.3 (0.9) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV-B23090T-S21 takes Pulse+Direction control mode.
Weight: 0.95 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.
| Frame size: NEMA23 |
| Torque: 0.32 Nm |
| Power: 90 W |
| Communications protocol: Pulse+Direction |
| Input Voltage (V): 24 VDC, 36 VDC |
| Producent: LEADSHINE |
