iSV2-CAN6020V24G Motor

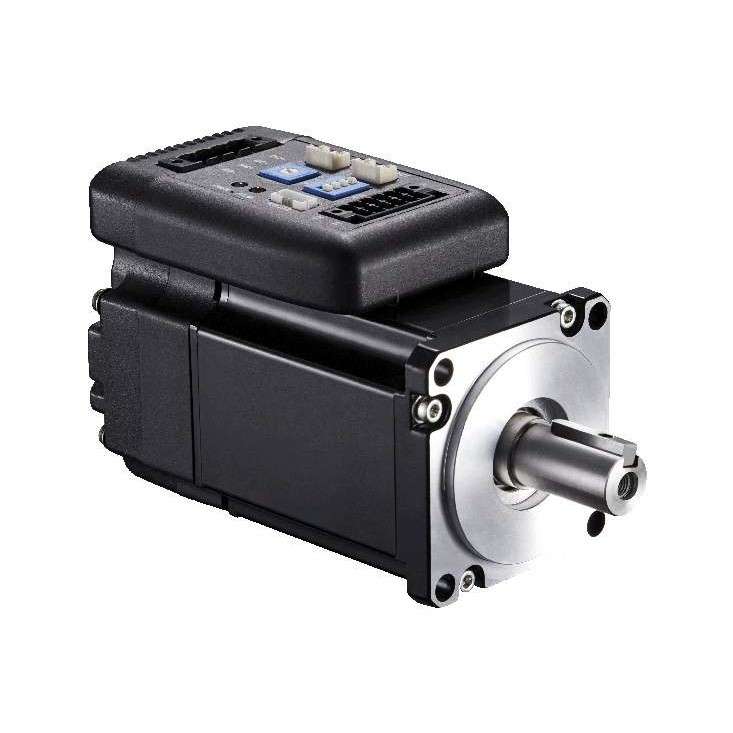

Leadshine iSV2-CAN6020V24G is a high-performance integrated DC servo system that combines servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.

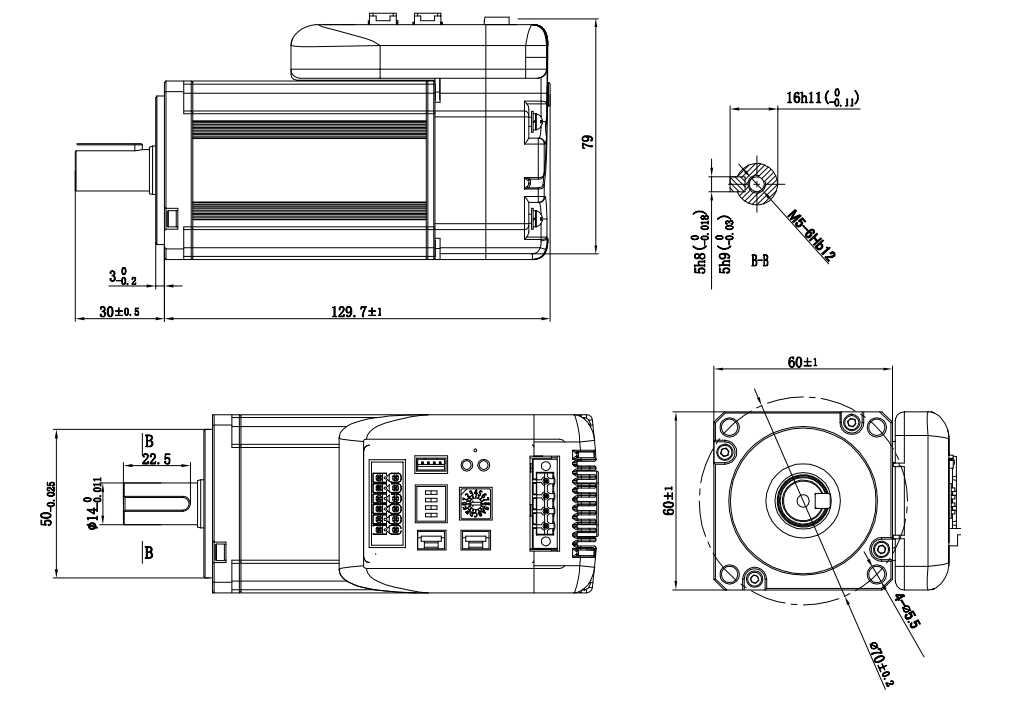

Frame size: 60 mm.
Rated power: 200 W.
Rated voltage: 24 VDC.

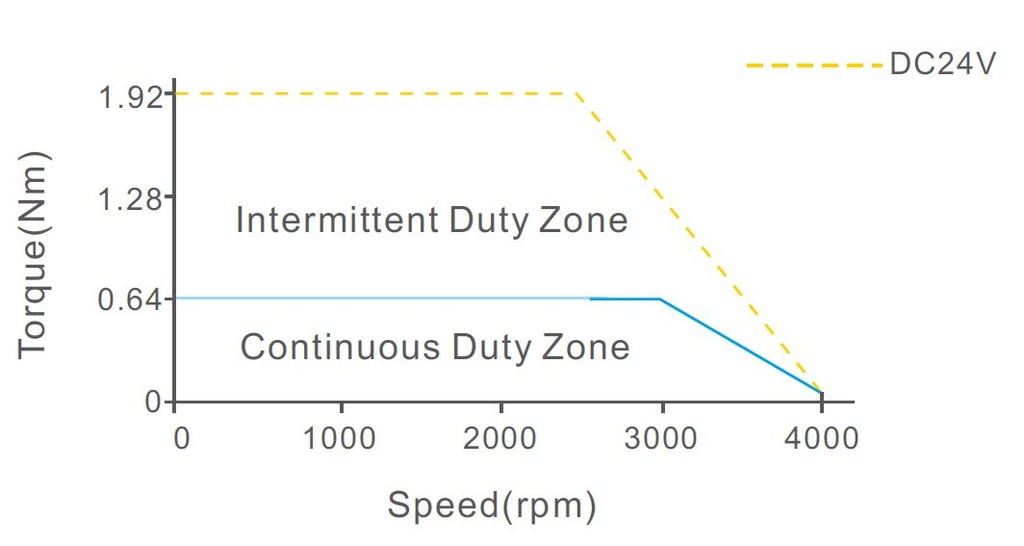

Torque rated (peak): 0.64 (1.92) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV2-CAN6020V24G takes CANopen control mode.
User-configurable I/O: 4 DI and 2 DO.
Weight: 1.32 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.
| Frame size: 60x60 mm |
| Torque: 0.64 Nm |
| Power: 200 W |
| Communications protocol: CANopen |
| Input Voltage (V): 24 VDC |
| Producent: LEADSHINE |
