iSV2-CAN8075V48H Motor

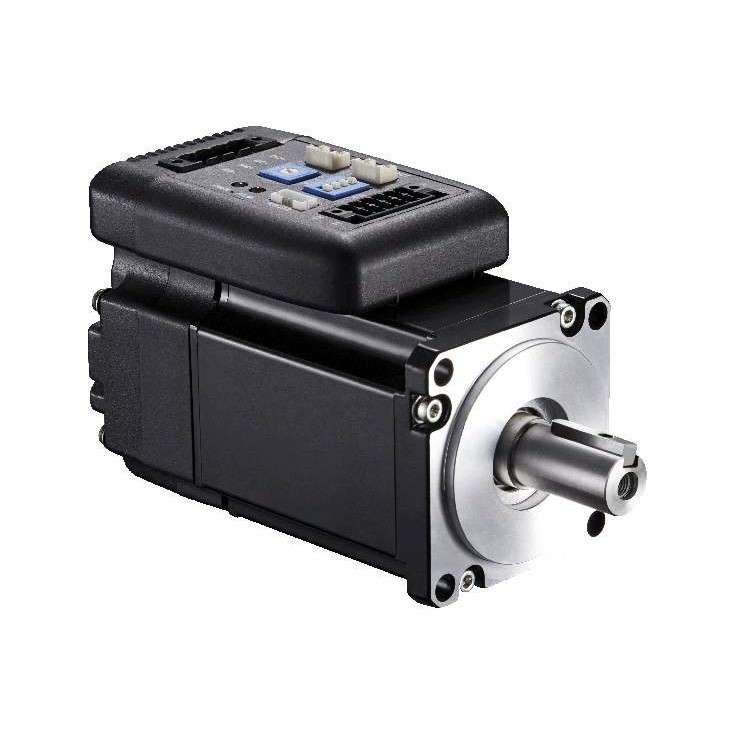

Leadshine iSV2-CAN8075V48H is a high-performance integrated DC servo system that combines servo motor, a fully digital servo drive and a 17-bit magnetic encoder in one compact unit.

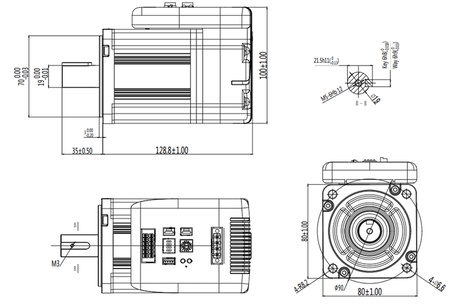

Frame size: 80 mm.
Rated power: 750 W.
Rated voltage: 48 VDC.

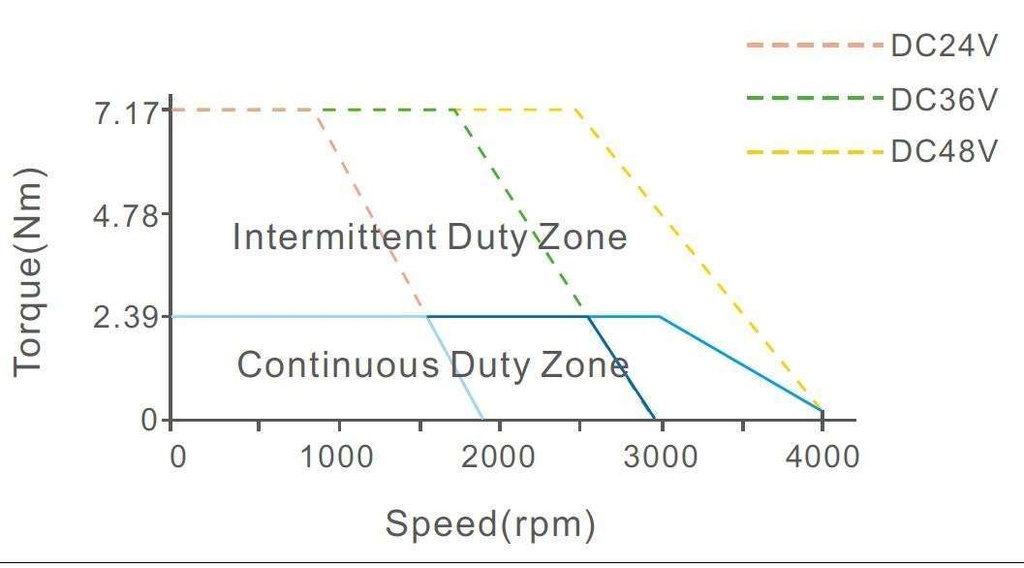

Torque rated (peak): 2.4 (7.2) Nm.
Speed rated (peak): 3000 (4000) rpm.
iSV2-CAN8075V48H takes CANopen control mode.
User-configurable I/O: 4 DI and 2 DO.
Weight: 2.52 kg.
Built-in protections: over-voltage, over-current, position error and over-temperature.
| Frame size: 80x80 mm |
| Torque: 2.39 Nm |
| Power: 750 W |
| Communications protocol: CANopen |
| Input Voltage (V): 48 VDC |
| Producent: LEADSHINE |
