MSG35S linear guideway from PMI is a square type with smaller width and can be installed from top side of carriage.

The MSG Series Wide Rail Type linear guideway features a compact design with four-way equal load capabilities, ensuring high precision and rigidity. It offers smooth movement with low noise and has self-alignment capabilities.

The patented lubrication system ensures optimal performance, enhancing running accuracy, service life, and reliability. The series also boasts interchangeability, allowing for versatile application in various installation directions.

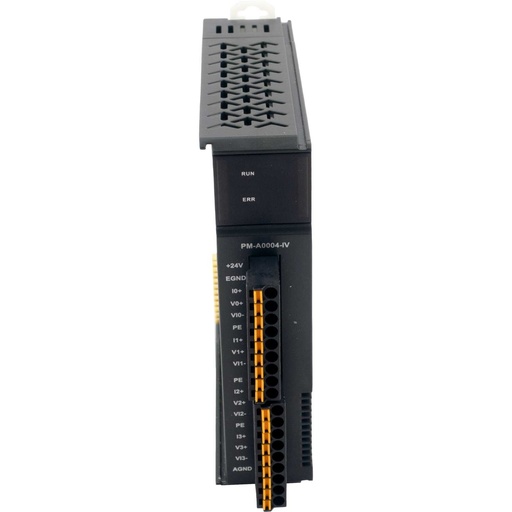

The PM-A0004-IV is a 4-channel analog output module. Each channel supports both voltage (V) and current (I) output modes, allowing flexible integration into various industrial control systems, including motion control, process automation, and data acquisition.

Key Features
Channels: 4 analog outputs
Output Types:
– Voltage: 0–5 V, 0–10 V, ±5 V, ±10 V
– Current: 0–20 mA, 4–20 mA
Resolution: 16-bit D/A conversion
Accuracy: ±0.1% (typical)
Isolation: Optical isolation between channels and system bus
Status Indicators: LEDs for power and channel activity
Connection: Screw terminals or detachable terminal blocks
Mounting: DIN-rail (EN 50022 standard 35 mm)

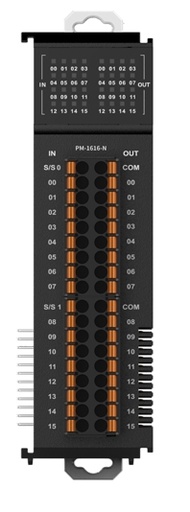

The PM-1616-N is a digital I/O module. Designed for space-efficient automation systems, it allows seamless integration of sensors, switches, actuators, and signal devices within a unified control platform.
The inputs are optically isolated for improved noise immunity and signal integrity, while the outputs are transistor-based, enabling reliable control of low-voltage DC loads.

Key Features
Channels:
16 digital inputs
16 digital outpus
Input Types: Sourcing (PNP) or sinking (NPN)
Output Type: NPN (open collector)
Output Voltage: 24 VDC
Max Output Current: 0.5 A per output channel
Isolation: Optical isolation for both inputs and outputs
Connection: Terminal block
Status Indicators: Individual LEDs for all input and output channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

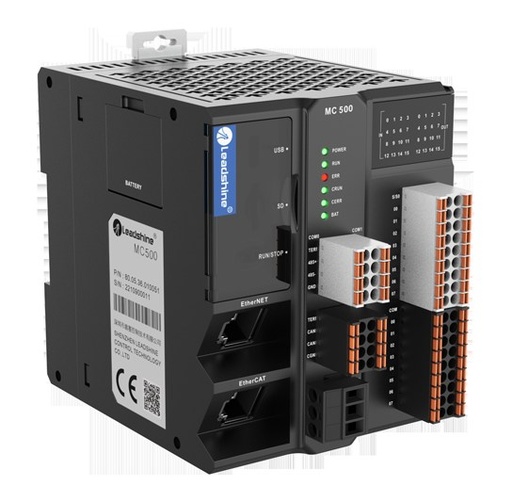

MC500 series PLCs are compatible with Codesys and Leadsys Studio software

Motion Control
Supports EtherCAT control of 16 axes
6-axis high-speed pulse output at 200 kHz
Linear interpolation for up to 6 axes, circular interpolation for 3 axes
Advanced motion features: Electronic CAM (E-CAM), flying shear, and chasing shear

Intelligent Interconnection
Supports OPC UA and EtherNet/IP industrial communication protocols
CANopen distributed control for up to 32 nodes
Modbus and free communication port for flexible integration

Comprehensive Functionality
Local bus expansion supporting up to 32 I/O modules
Total I/O capacity up to 32,767 points
6 high-speed counters (200 kHz)
Built-in protections: over-temperature, over-voltage, and short circuit

Memory and Storage
Program Memory: 20 MB
Data Memory: 40 MB
Non-volatile Retention Area: 512 KB (for power-failure data retention)
SD Card Slot: Supports standard microSD cards (FAT32), maximum capacity up to 32 GB for program download and data storage

Digital I/O Specifications
Digital Inputs: 16 total
12 high-speed inputs (200 kHz)
4 standard inputs (1 kHz), NPN/PNP configurable
Digital Outputs: 16 total
12 high-speed outputs (200 kHz)
4 standard outputs (10 kHz), NPN type

Supported Programming Languages: ST, LD, CFC, SFC, FBD, IL

Leadshine ELM1H-0850MD130F-H AC servo motor.
The ELM1H-0850MD130F-H has 23bit magnetic encoder.
Frame size 130 mm.
Rated power 850 W.
Rated voltage 230 VAC.
Torque rated (peak) 5.39 (16.17) Nm.
Speed rated (peak) 1500 (4500) rpm.
Current rated (peak) 6.8 (20.4) A.
Weight 5.5 kg.

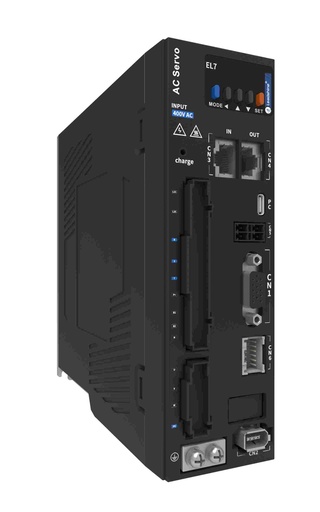

Leadshine EL7-EC1000N servo drive.
Rated power 1000 W.
Input voltage 230 VAC.
Current rated (peak) 7.0 (18.7) A.
EL7-EC1000N takes EtherCAT, Modbus RTU, Pulse+Direction or Analog control modes.
User-configurable I/O: 8 DI, 5 DO.

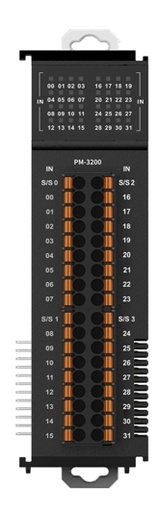

The PM-3200 is a 32-channel digital input module. It provides reliable, high-speed detection of discrete signals from field devices such as sensors, switches, and buttons. Each input channel is electrically isolated to ensure robust performance and protection against industrial electrical noise.

Key Features
Channels: 32 digital inputs
Input Types: Sourcing (PNP) or sinking (NPN)
Input Voltage: 24 VDC (typical operating range: 12–30 VDC)
Input Current: Typically 3–7 mA per channel
Isolation: Optical isolation between inputs and control logic
Response Time: Fast signal detection (<1 ms)
Connection: Removable terminal blocks for easy installation and maintenance
Status Indicators: LED indicators for all input channels
Mounting: DIN-rail (EN 50022 standard 35 mm)

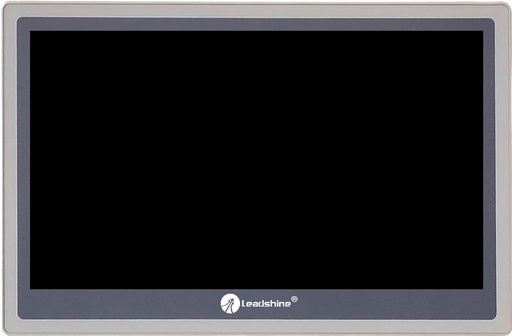

The LT2156E is a high-performance Human-Machine Interface (HMI) featuring a 15.6-inch widescreen TFT display with 1920×1080 Full HD resolution, delivering crisp and clear visuals ideal for industrial applications.
The 15.6" industrial touch panel LT2156E designed for seamless integration, it supports a wide range of communication protocols including Modbus, TCP/IP, and OPC, making it compatible with PLCs, motion controllers, and other field devices.
The LT2156E is well-suited for SCADA systems, smart manufacturing dashboards, machine automation interfaces, and IIoT applications where reliability and ease of use are essential.
Display: 15.6" Full HD (1920×1080) TFT.
Touch Screen: 4-wire industrial resistive.
Interfaces: RS232/RS485/RS422, Ethernet, USB, optional CAN.
Processor: Industrial-grade 1 GHz ARM Cortex-A8.
Storage: 256 MB Flash + 512 MB DDR3, with SD card and USB support.
Power Supply: 24 VDC.

Shaft Supports - SK08
Vertical shaft support diameter 8mm

Shaft Supports - SHF60
Flanged shaft support diameter 60mm

Shaft Supports - SHF50
Flanged shaft support diameter 50mm

Shaft Supports - SHF40
Flanged shaft support diameter 40mm

Shaft Supports - SHF35
Flanged shaft support diameter 35mm

Shaft Supports - SHF30
Flanged shaft support diameter 30mm

Shaft Supports - SHF25
Flanged shaft support diameter 25mm

Shaft Supports - SHF20
Flanged shaft support diameter 20mm

Shaft Supports - SHF16
Flanged shaft support diameter 16mm

Shaft Supports - SHF13
Flanged shaft support diameter 13mm

Shaft Supports - SHF10
Flanged shaft support diameter 10mm

Shaft Supports - SHF08
Flanged shaft support diameter 8mm

Shaft Supports - SK60
Vertical shaft support diameter 60mm

Shaft Supports - SK50
Vertical shaft support diameter 50mm

Shaft Supports - SK40
Vertical shaft support diameter 40mm

Shaft Supports - SK35
Vertical shaft support diameter 35mm

Shaft Supports - SK30
Vertical shaft support diameter 30mm

Shaft Supports - SK25
Vertical shaft support diameter 25mm

Shaft Supports - SK20
Vertical shaft support diameter 20mm

Shaft Supports - SK16
Vertical shaft support diameter 16mm

Shaft Supports - SK13
Vertical shaft support diameter 13mm

Shaft Supports - SK10
Vertical shaft support diameter 10mm

The KH5070PP is a compact linear ball bushing bearing, commonly used in CNC machines, 3D printers, and other applications requiring precise linear motion.

The KH4060PP is a compact linear ball bushing bearing, commonly used in CNC machines, 3D printers, and other applications requiring precise linear motion.

The KH3050PP is a compact linear ball bushing bearing, commonly used in CNC machines, 3D printers, and other applications requiring precise linear motion.

The KH2540PP is a compact linear ball bushing bearing, commonly used in CNC machines, 3D printers, and other applications requiring precise linear motion.

The KH2030PP is a compact linear ball bushing bearing, commonly used in CNC machines, 3D printers, and other applications requiring precise linear motion.

The KH1630PP is a compact linear ball bushing bearing, commonly used in CNC machines, 3D printers, and other applications requiring precise linear motion.
