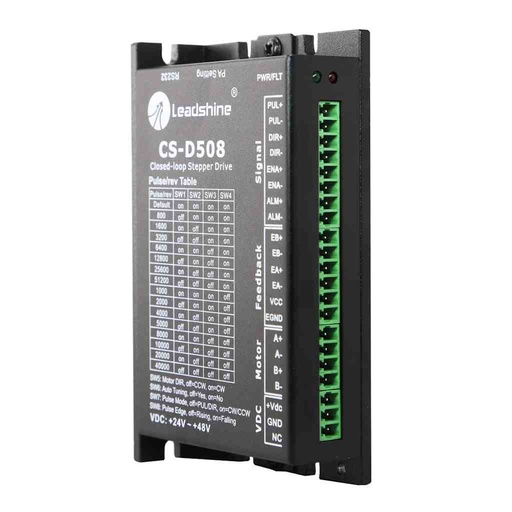

Leadshine CS-D508 closed loop stepper driver.
Input voltage of 20 - 50 VDC.
Output current of 0.50 - 8.00 A.
CS-D508 takes step & direction (PUL/DIR) or CW/CCW control modes. Closed loop stepper driver Leadshine CS-D508 is easy to setup and configure via DIP switches.

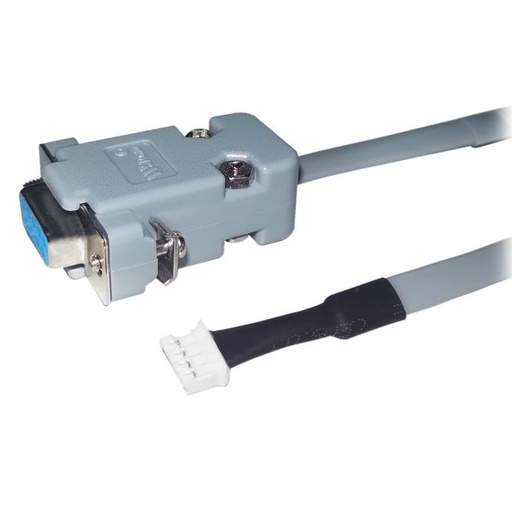

Leadshine CABLE-PC-1 cable for tuning stepper and servo systems.
RS232.
1.2 meters (3.9 foots) long.

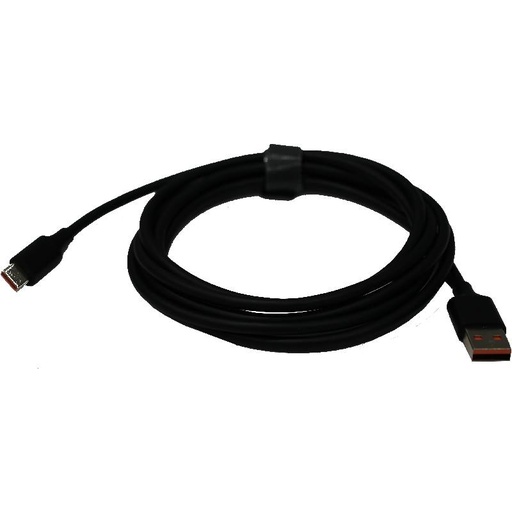

Leadshine CABLE-TYPEC2M0 cable for tuning servo systems.
CABLE-TYPEC2M0 cable for communication cable to EL7 and EL8 series servo drivers.
2 meters (6.6 foots) long.

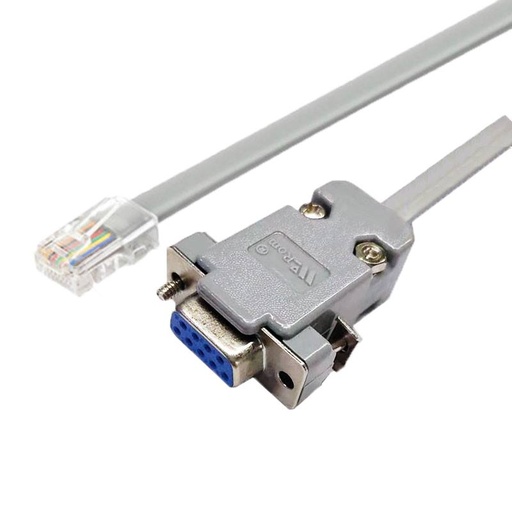

Leadshine CABLE-PC cable for tuning stepper systems.
CABLE-PC cable for communication cable to DM/EM series stepper drivers.
RS232.
1.2 meters (3.9 foots) long.

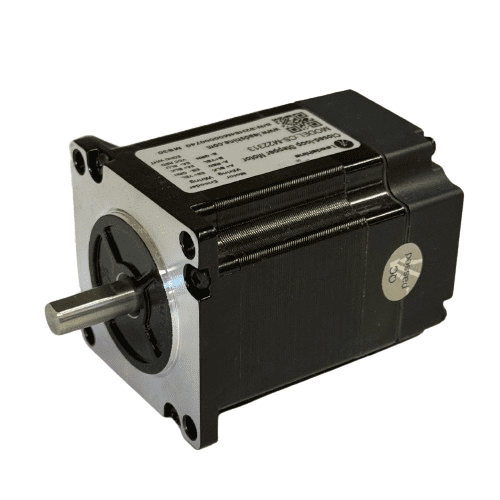

Leadshine CS-M22313 NEMA 23 closed loop stepper motor.
Holding torque 1.3 Nm.
Current 4.00 A.
75 mm (2.95 inch) long.
8 mm (0.315 inch) shaft size.
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder.

KNO25-PP - INA
R067122540 - Rexroth
LBCF25-2LS - SKF
Self-Aligning Linear Bushing LMES 25 UUOP
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

LJM60-3000 - SKF
SN60-3000 - NB
WB60-3000 - INA
1000-010-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings

LJM40-3000 - SKF
SN40-3000 - NB
WB40-3000 - INA
1000-040-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings

LJM25-3000 - SKF
SN25-3000 - NB
WB25-3000 - INA
1000-025-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings

LJM16-3000 - SKF
SN16-3000 - NB
WB16-3000 - INA
1000-016-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings

LJM10-3000 - SKF
SN10-3000 - NB
WB10-3000 - INA
1000-010-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings

LJM08-3000 - SKF
SN08-3000 - NB
WB08-3000 - INA
1000-008-00 - Rexroth
• Steel grade CF53 shaft (surface treatment and chamfering is
possible)
• Induction hardened and ground linear shaft
• Shaft processing according to customer drawings

KH16-PP - INA
R065821640 - Rexroth
LBBR16-2LS - SKF
Compact Linear Bushing CLB 16 UU
• Economic product used for variety of application
• Compact size resolving space restriction
• Ease of assembly : no need additional accessary
• Housing applicable for anti-rusting, etc
• 100% interchangeable : perfectly interchange with other companies'
compact series

Tr12x3 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr50x8 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr40x7 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr36x6 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr30x6 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr24x5 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr20x4 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr16x4 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

Tr14x3 FEU Right hand bronze trapezoidal flange nut.
Manufactured in accordance with ISO DIN 103, tolerance 7H.
We can produce special nuts according to customers drawings in different materials.

LMK16LUU - THK
SMK16GWUU - NB
LHFSW16 - MISUMI
SUS SERIES-Flanged Linear Bushing LMK 16 LUU
• Outer-sleeve, ball and flange : used stainless steel. corrosion resistance
products
• With a variety of design and ease of installation
• Used when the load of moving body passed directly to the Linear
Bushing
• Installed without housing
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)

LMH16UU - THK
SMT16GUU - NB
LHZC16 - MISUMI
SUS SERIES-Flanged Linear Bushing LMH 16 UU
• Outer-sleeve, ball and flange : used stainless steel. corrosion resistance
products
• With a variety of design and ease of installation
• Used when the load of moving body passed directly to the Linear
Bushing
• Installed without housing
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)

KN50 - INA
R067005000 - Rexroth
LBCD50 - SKF
Self-Aligning Linear Bushing LMES 50 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KNO40-PP - INA
R067124040 - Rexroth
LBCF40-2LS - SKF
Self-Aligning Linear Bushing LMES 40 UUOP
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KNO30-PP - INA
R067123040 - Rexroth
LBCF30-2LS - SKF
Self-Aligning Linear Bushing LME S30 UUOP
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KN30 - INA
R067003000 - Rexroth
LBCD30 - SKF
Self-Aligning Linear Bushing LMES 30 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KN25 - INA
R067002500 - Rexroth
LBCD25 - SKF
Self-Aligning Linear Bushing LMES 25 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KN20 - INA
R067002000 - Rexroth
LBCD20 - SKF
Self-Aligning Linear Bushing LMES 20 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KN16 - INA
R067001600 - Rexroth
LBCD16 - SKF
Self-Aligning Linear Bushing LMES 16 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KN12 - INA
R067001200 - Rexroth
LBCD12 - SKF
Self-Aligning Linear Bushing LMES 12 UU
• High load Capacity and long travel life
• Interchangeable with Standard linear bushing on European&American Type
• Travel speeds up to 10ft/s (3m/s) and smooth operation
• Easy of installation as a result of self-aligning Ball plates (±0.5˚)
• Anti-Rusting: Nickel or Chrome Plating, Raydent Treatment of ball plate, Stainless-steel ball.

KB08-PP - INA
R060230810 - Rexroth
LBCR8-2LS - SKF
Standard Linear Bushing LME 08 UU
• Shaft diameter 8 mm
• Provide low friction on high-speed movement
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)
• Corrosion-resisting: the nickel-plated, Raydent treatment of Outersleeves,
stainless steel ball

KB60-PP - INA
R0602306010 - Rexroth
LBCR60-2LS - SKF
Standard Linear Bushing LME 60 UU
• Shaft diameter 60 ㎜
• Provide low friction on high-speed movement
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)
• Corrosion-resisting: the nickel-plated, Raydent treatment of Outersleeves,
stainless steel ball

KBO40 - INA
R0602304010 - Rexroth
LBCT40 - SKF
Standard Linear Bushing LME 40 UUOP
• Shaft diameter 40 mm
• Provide low friction on high-speed movement
• Can be selected resin retainer (standard), and steel retainer (for high
temperature & vacuum)
• Corrosion-resisting: the nickel-plated, Raydent treatment of Outersleeves,
stainless steel ball
