Sterownik silnika serwo Leadshine ELD2-CAN7030B .
Moc znamionowa 1200 W.
Napięcie wejściowe 24 - 70 VDC.
Prąd znamionowy (szczytowy) 30 (90) A
Model ELD2-CAN7030B obsługuje tryby sterowania CANopen.
Konfigurowalne wejścia/wyjścia: 4 DI i 2 DO.

Silnik serwo prądu stałego Leadshine ELVM80100V48EH-M17-HD z hamulcem.
Model ELVM80100V48EH-M17-HD posiada 17-bitowy magnetyczny absolutny enkoder wieloobrotowy.
Rozmiar ramy 80 mm.
Moc znamionowa 1000 W.
Napięcie znamionowe 48 VDC.
Moment znamionowy (szczytowy) 3.2 (9.6) Nm.
Prędkość znamionowa (szczytowa) 3000 (4000) obr./min.
Prąd znamionowy (szczytowy) 28 (87) A.
Masa 3.2 kg.

Sterownik silnika serwo dwukanałowy Leadshine 2ELD2-CAN7030B .
Moc znamionowa 2x1200 W.
Napięcie wejściowe 24 - 70 VDC.
Prąd znamionowy (szczytowy) 2x30 (90) A
Model 2ELD2-CAN7030B obsługuje tryby sterowania CANopen lub analogowy.
Konfigurowalne wejścia/wyjścia: 4 DI i 2 DO.

Silnik serwo prądu stałego Leadshine ELVM8075V48FH-M17-HD.
Model ELVM8075V48FH-M17-HD posiada 17-bitowy magnetyczny absolutny enkoder wieloobrotowy.
Rozmiar ramy 80 mm.
Moc znamionowa 750 W.
Napięcie znamionowe 48 VDC.
Moment znamionowy (szczytowy) 2.39 (7.17) Nm.
Prędkość znamionowa (szczytowa) 3000 (3900) obr./min.
Prąd znamionowy (szczytowy) 19 (59) A.
Masa 2.12 kg.

Silnik serwo prądu stałego Leadshine ELVM6040V48FH-M17-HD.
Model ELVM6040V48FH-M17-HD posiada 17-bitowy magnetyczny absolutny enkoder wieloobrotowy.
Rozmiar ramy 60 mm.
Moc znamionowa 400 W.
Napięcie znamionowe 48 VDC.
Moment znamionowy (szczytowy) 1.27 (3.81) Nm.
Prędkość znamionowa (szczytowa) 3000 (4000) obr./min.
Prąd znamionowy (szczytowy) 10 (31) A.
Masa 1.3 kg.

Leadshine ELD3-EC7020BM mini DC servo drive.
Rated power 750 W.
Input voltage 24-70 VDC.
Current rated (peak) 20 (50) A
ELD3-EC7020BM takes EtherCAT control modes.
User-configurable I/O: 6 DI, 3 DO and 2 AI.

Leadshine CABLE-BMD1M5-273-T encoder cable for servo systems.
CABLE-BMD1M5-273-T is for ELVM series motors and ELD3 series drives.
Leadshine CABLE-BMD1M5-273-T is for connect a single turn servo motor encoder.
1.5 meters (4.9 foots) long.

Leadshine CABLE-RZD1M5-143 power cable for servo systems.
CABLE-RZD1M5-143 is for ELVM60 type motors and ELD2 series drives.
1.5 meters (4.9 foots) long.

Leadshine CABLE-RZD1M5-253 power cable for servo systems.
CABLE-RZD1M5-253 is for ELVM60 and ELVM80 type motors and ELD2 series drives.
1.5 meters (4.9 foots) long.

Leadshine D57CM31-4A NEMA 23 stepper motor.
Holding torque 3.1 Nm.
Current 4 A.
88 mm (3.46 inch) long.
8 mm (0.315 inch) shaft size.

Leadshine 42CM08-1A NEMA 17 stepper motor.
Holding torque 0.8 Nm.
Current 1.50 A.
60 mm (2.36 inch) long.
5 mm (0.197 inch) shaft size.

Leadshine EM532-MINI stepper driver.
Input voltage of 18 - 50 VDC.
Output current of 0.40 - 3.20 A.
EM532-MINI takes step & direction (PUL/DIR). Stepper driver Leadshine EM532-MINI is easy to setup and configure via DIP switches.

Zasilacz Leadshine LSP-360-24.
Napięcie wejściowe: 92–138 VAC lub 184–276 VAC.
Napięcie wyjściowe: 24 VDC.
Prąd wyjściowy (szczytowy): 15 (27) A.
Moc znamionowa: 360 W.
Waga: 0,7 kg.

Zasilacz Leadshine SPS4810-V-24.
Napięcie wejściowe: 176–264 VAC.
Napięcie wyjściowe: 24 V i 48 VDC.
Prąd wyjściowy (szczytowy): 10 (30) A.
Moc znamionowa: 480 W.
Waga: 0,7 kg.

Leadshine CABLE-BMD1M5-295 encoder cable for servo systems.
CABLE-BMD1M5-295 is for ELVM series motors and ELD3 series drives.
Leadshine CABLE-BMD1M5-295 is for connect a single turn servo motor incremental optical encoder.
1.5 meters (4.9 foots) long.

Silnik serwo prądu stałego Leadshine ELVM4010V48FH-B25-HD.
Model ELVM4010V48FH-B25-HD posiada jednoobrotowy optyczny enkoder inkrementalny 2500 ppr.
Rozmiar ramy 40 mm.
Moc znamionowa 100 W.
Napięcie znamionowe 48 VDC.
Moment znamionowy (szczytowy) 0.32 (0.96) Nm.
Prędkość znamionowa (szczytowa) 3000 (4000) obr./min.
Prąd znamionowy (szczytowy) 5.7 (17.7) A.
Masa 0.43 kg.

Leadshine CABLE-RZD1M5-123 power cable for servo systems.
CABLE-RZD1M5-123 is for ELVM series motors and ELD2 series drives.
1.5 meters (4.9 foots) long.

Silnik serwo prądu stałego Leadshine ELVM4010V48FH-M17-HD.
Model ELVM4010V48FH-M17-HD posiada 17-bitowy magnetyczny absolutny enkoder wieloobrotowy.
Rozmiar ramy 40 mm.
Moc znamionowa 100 W.
Napięcie znamionowe 48 VDC.
Moment znamionowy (szczytowy) 0.32 (0.96) Nm.
Prędkość znamionowa (szczytowa) 3000 (4000) obr./min.
Prąd znamionowy (szczytowy) 5.7 (17.7) A.
Masa 0.43 kg.

Leadshine ELD3-EC7005BM mini DC servo drive.
Rated power 200 W.
Input voltage 24-70 VDC.
Current rated (peak) 5 (12.5) A
ELD3-EC7005BM takes EtherCAT control modes.
User-configurable I/O: 6 DI, 3 DO and 2 AI.

Sterowniki PLC serii MC500 są kompatybilne z oprogramowaniem Codesys i Leadsys Studio

Sterowanie ruchem
Obsługa EtherCAT do 8 osi
Wyjście impulsowe dużej prędkości dla 6 osi — 200 kHz
Interpolacja liniowa do 6 osi, interpolacja kołowa do 3 osi
Zaawansowane funkcje ruchu: elektroniczny CAM (E-CAM)

Inteligentne połączenia
Obsługa protokołów komunikacyjnych OPC UA i EtherNet/IP
Rozproszona kontrola CANopen do 32 węzłów
Port Modbus i wolny port komunikacyjny do elastycznej integracji

Rozbudowana funkcjonalność
Rozszerzenie magistrali lokalnej do 32 modułów I/O
Łączna pojemność I/O do 32 767 punktów
6 szybkich liczników (200 kHz)
Wbudowane zabezpieczenia: przed przegrzaniem, przepięciem i zwarciem

Pamięć i przechowywanie danych
Pamięć programu: 20 MB
Pamięć danych: 40 MB
Obszar trwały: 512 KB (na wypadek awarii zasilania)
Gniazdo kart SD: obsługuje standardowe karty microSD (FAT32), maksymalna pojemność do 32 GB na programy i dane

Specyfikacja wejść/wyjść cyfrowych
Wejścia cyfrowe: łącznie 16
12 szybkich wejść (200 kHz)
4 standardowe wejścia (1 kHz), konfigurowalne NPN/PNP
Wyjścia cyfrowe: łącznie 16
12 szybkich wyjść (200 kHz)
4 standardowe wyjścia (10 kHz), typ NPN

Obsługiwane języki programowania: ST, LD, CFC, SFC, FBD, IL

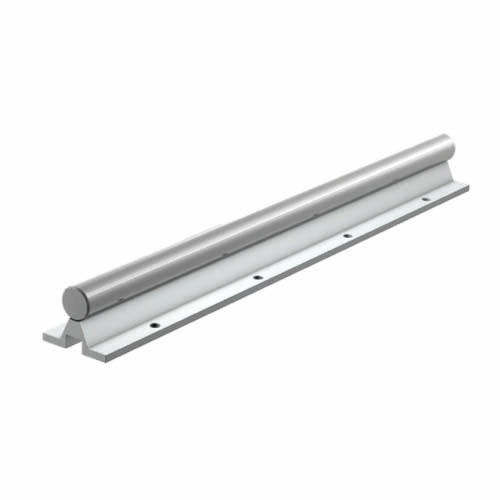

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 030 00 (Rexroth)
TSWW30 (INA)

Diameter: 30 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45.

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 025 00 (Rexroth)
TSWW25 (INA)

Diameter: 25 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 020 00 (Rexroth)
TSWW20 (INA)

Diameter: 20 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

TBR shafts have a similar design to SBR, but their aluminum support is reinforced and more massive, significantly increasing the load-bearing capacity of the system. This robust support provides greater rigidity and resistance to heavy loads, making TBR shafts suitable for demanding industrial equipment and machines where high strength and minimal deflection are required.

Cross References:
R1010 016 00 (Rexroth)
TSWW16 (INA)

Diameter: 16 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

This rail does not require end fasteners, as the shaft is supported along its entire length by an aluminum support with holes for mounting on the frame. With this design, there is no shaft deflection over long lengths, so SBR guides can be used for CNC machines with large working areas, unlike conventional polished shafts.

Diameter: 35 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 030 00 (Rexroth)
FTSN30GW (FLI)
TSNW30 (INA)

Diameter: 30 mm.
Length: 5900 mm.
Tolerance: h6.
Material: C45.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 025 00 (Rexroth)
FTSN25GW (FLI)
TSNW25 (INA)

Diameter: 25 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 020 00 (Rexroth)
FTSN20GW (FLI)
TSNW20 (INA)

Diameter: 20 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 016 00 (Rexroth)
FTSN16GW (FLI)
TSNW16 (INA)

Diameter: 16 mm.
Length: 6000 mm.
Tolerance: h6.
Material: C45.

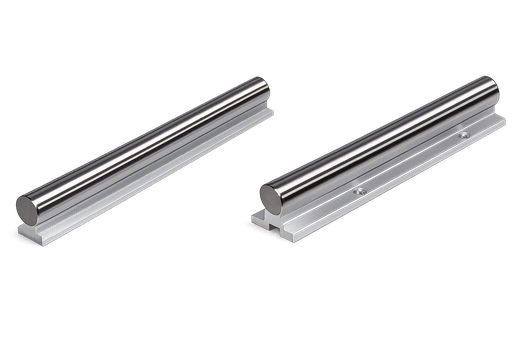

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Cross References:
R1014 012 00 (Rexroth)
FTSN12GW (FLI)
TSNW12 (INA)

Diameter: 12 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

SBR shafts are precision-ground cylindrical guides mounted on an aluminum support rail, which simplifies installation and increases structural rigidity. This support ensures stable alignment and reduces bending, allowing SBR shafts to operate reliably under medium loads in CNC machines, 3D printers, and various automated systems.

Diameter: 10 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

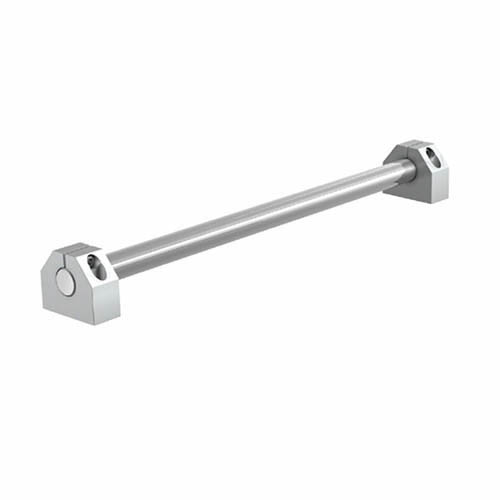

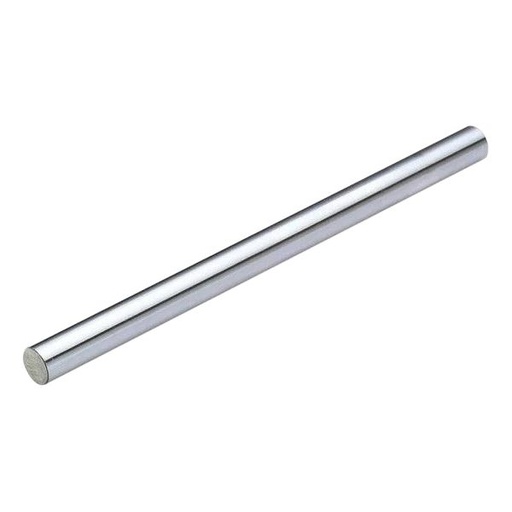

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Diameter: 120 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
R1000 110 00 (Rexroth)

Diameter: 110 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
R1000 100 00 (Rexroth)
W 100 (FLI)

Diameter: 100 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
W 90 (FLI)

Diameter: 90 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.

High-precision cylindrical shafts made of hardened steel, used in CNC machines, 3D printers, and automated lines to ensure smooth and accurate linear motion and torque transmission.

Cross References:
R1000 080 00 (Rexroth)
LJM 80 (Ewellix)
W 80 (FLI)
W80 (INA)

Diameter: 80 mm.
Length: 4000 mm.
Tolerance: h6.
Material: C45.
